zebra barcode scanner

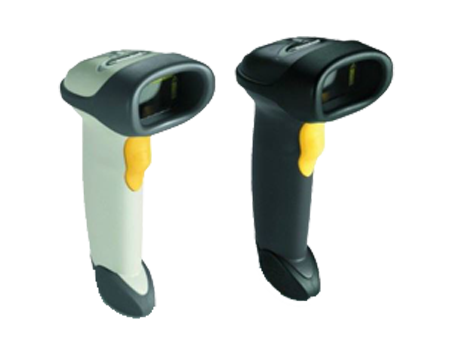

1D-LS2208 wired
1D-LS2208 wired
- Designed for continuous usage all day, every day; significantly reduces downtime and repair costs.
- Enables presentation scanning and easy switching between handsfree and handheld modes.
- Enables users to modify data prior to sending to host computer, reducing costly modifications to
the host software.
- Improves productivity.
features
- Accurate first time scanning; always ready for the next scan; increased productivity resulting
in shorter check-out lines and better customer service.
- Simplifies installation and integration; future-proof solution helps ensure compatibility with
your host/POS today and tomorrow.
- Rapid deployment; single cable connects to any computing environment; practically eliminates
setup and training time for faster return on investment.
- Reduces user fatigue with sleek, balanced form for maximum user comfort and productivity.
specification
PHYSICAL CHARACTERISTICS |
Dimensions |
6 in. H x 2.5 in. W x 3.34 in. D 15.2 cm H x 6.3 cm W x 8.4 cm |
Weight |
5.29 oz/150 gm |
Voltage and Current |
5 volts +/- 10% at 130 mA typical, 175 mA max |
Power Source |
Host power or external power supply |
Colour |
Cash Register White or Twilight Black |
PERFORMANCE CHARACTERISTICS |
Scanner Type |
Bi-directional |
Light Source |
650 nm visible laser diode |
Scan Element Frequency |
50Hz |
Scan Rate |
100 scans per second typical |
Nominal Working Distance |
See chart below. |
Print Contrast |
20% minimum reflective difference |
Roll (Tilt): |
1 1 +/- 30 degrees |
Pitch: |
2 2 +/- 65 degrees |
Skew (Yaw): 3 |
3 +/- 60 degrees |
Decode Capability |
UPC/EAN, UPC/EAN with Supplementals, UPC/ EAN 128, Code 39, Code 39 Full ASCII,
Code 39 TriOptic, Code 128, Code 128 Full ASCII, Codabar, Interleaved 2 of 5, Discrete
2 of 5, Code 93, MSI, Code 11, IATA, GS1 DataBar (formerly RSS) variants, Chinese 2 of 5 |
Interfaces Supported |
USB, RS232, Keyboard Wedge, IBM 468x/9x |
NOMINAL WORKING DISTANCE |
|
DEPTH OF FIELD |
Label Density |
LS2208 |
Paper Label |
|
Code 39 - 5 mil |
English:2.50" - 6.00" Metric:6.00 - 15.25 cm |
Code 39 - 7.5 mil |
English:1.50" - 10.00" Metric:3.80 - 25.40 cm |
Code 39 – 10 mil |
English:1.00" - 14.25" Metric:2.54 - 14.25 cm |
100% UPC – 13 mil |
English:0 - 17.00" Metric:0 - 43.00 cm |
Code 39 – 20 mil |
English:0 - 23.00" Metric:0 - 58.50 cm |
Code 39 – 40 mil |
English:0 - 30.00" Metric:0 - 76.00 cm |
NOMINAL WORKING DISTANCE |
Operating Temp |
32° to 122° F/0° to 50° C |
Storage Temp |
-40° to 158° F/-40° to 70° C |
Humidity |
5% to 95% relative humidity, noncondensing |
Drop Specifications |
Unit functions normally after repeated 5 ft./1.5 m drops to concrete |
Ambient Lighting |
Tolerant to typical artificial indoor and Tolerance: natural outdoor(direct sunlight)
lighting conditions. Fluorescent, Incandescent, Mercury Vapor, Sodium Vapor, LED4: 450
Ft Candles (4,844 Lux) Sunlight: 8000 Ft Candles (86,111 Lux) |
Electrostatic Discharge |
Conforms to 15 kV air discharge and 8 kV of contact discharge |
REGULATORY |
Electrical Safety |
Certified to UL1950, CSA C22.2 No. 950, EN60950/IEC950 |
EMI/RFI |
FCC Part 15 Class B, ICES-003 Class B, European Union EMC Directive, Australian SMA, Taiwan EMC,
Japan VCCI/MITI/Dentori |
Laser Safety |
CDRH Class II, IEC Class 2 |
Environmental |
Compliant with RoHS directive 2002/95/EEC |
ACCESSORIES |
Hands-Free Intellistand |
20-61019-01R or 20-61019-02R |
WARRANTY |
The LS2208 is warranted against defects in workmanship and materials for a period
of 5 years (60 months) from date of shipment, provided that the product remains
unmodified and is operated under normal and proper conditions. See full warranty for details |
